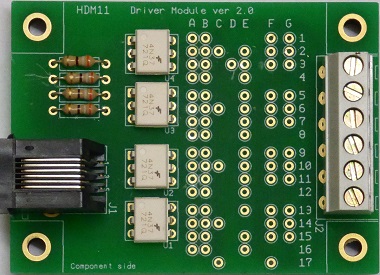

Universal Driver Module for LocoIO



This is a universal driver module for LocoIO. Then it is possible with the LocoIO outputs (5V, max 20mA) to drive different items with higher voltages and bigger currents.

DriverModule.pdf (version 05/09/2022) Compleet manual of driver board

This PCB 5x7cm with code "HDM11" without components can you purchase for 5 Euro
This PCB 5x7cm with code "HDM11MD1A" and components can you purchase for 13 Euro
This PCB 5x7cm with code "HDM11MD2A" and components can you purchase for 13 Euro
This PCB 5x7cm with code "HDM11MDU" and components can you purchase for 12 Euro (for version MD3 to MD12)

You can order at the LocoHDL WEBSHOP


MATRIX CONNECTIONS:

HDM11MD1: Switch driver with common positive connection.

HDM11MD2: Switch driver with common ground connection.


HDM11MD3: 2x 2-way or 3-way signals with common ground connection. For commercial signals that works 12-16V.

HDM11MD4: 2x 2-way or 3-way signals with common positive connection. For commercial signals that works 12-16V.

Mixing between MD1, MD2, MD3, MD4 on one print is possible. (only not with AC version of MD3 and MD4)

HDM11MD5: 4-way signal with common positive connection. For commercial signals that works 12-16V.


HDM11MD6: 4-way signal with common ground connection. For commercial signals that works 12-16V.

HDM11MD7: 4-way signal with LED's powered direct by LocoIO on 5V

HDM11MD8: 3-way Distance signal with LED's powered direct by LocoIO on 5V

HDM11MD9: 3-way or 4-way Distance signal with common positive connection. For commercial signals that works 12-16V.

HDM11MD10: 3-way or 4-way Distance signal with common ground connection. For commercial signals that works 12-16V.

HDM11MD11: 4-way Suisse signals with common positive connection. For commercial signals that works 12-16V.

HDM11MD12: 4-way Suisse signals with common ground connection. For commercial signals that works 12-16V.
